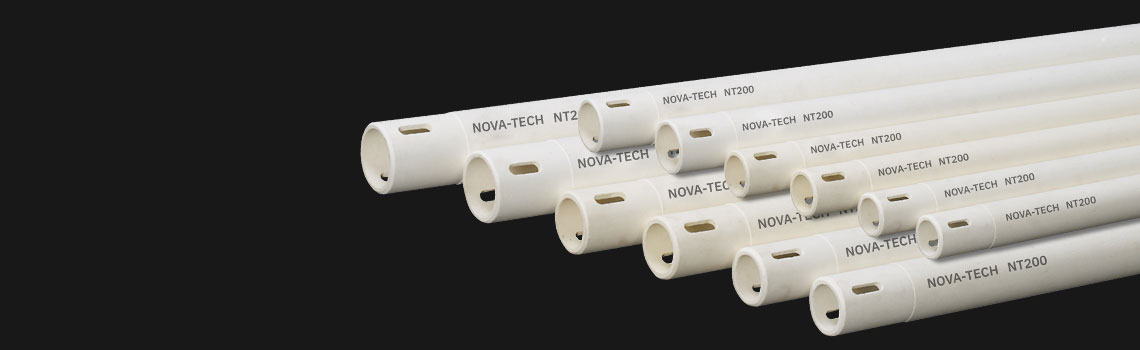

Ceramic Roller NT-200

Ceramic Roller Characterstics

ITEMS NT-200
Bulk Density(g/cm3) 2.5 - 2.7
Apparent Porosity(%) 14 - 18
Water Absorption(%) 5 - 7
Thermal Expansion Coefficent(25-10000C) 5.6 - 5.9
Thermal Shock Resistance Very Good
Max. Working Temp.(0C) 1300
Al2o3(%) + Zro2 75 - 77
Sio2(%) 21 - 23
Fe2o3(%) 0.3 - 0.4
Specification Diameter 25mm - 75mm, Length up to 5200mm
Linearity ≤ 0.07% x L

User Guide

How To Use Ceramic Roller

How to use the roller affects not only the service life of the roller but also smooth work the kiln. Generally, we select the type of roller depending on the maximum firing temperature. and load of the roller.
